Test period April to October 2017
Das Testfahrzeug ist die neue Harley-Davidson Road Glide Ultra 2017, sie hat den neuen vierventiler Motor mit dem Namen Milwaukee-Eight verbaut. Ein Hubraum von 1745 ccm² sorgt mit 152 Nm bei 3.250 U/min für ordentlich Vortrieb.
This long distance test should show us what the engine can take, some big tours await the machine, the Road Glide itself is one of the best tourers ever, a new chassis and the Euro 4 Milwaukee-Eight V2 engine are the outstanding new features of the 2017 version.
Technical data (Manufacturer information)
Price from €28,495 (June 2017)
Seat height: without rider / 735 mm
Front tires: 130/80 B17 65H
Rear tires: 180/65 B16 81H
Tank capacity: 18.9L / 22.7L total
Unladen weight ready to drive: 425 kg
Engine: Milwaukee-Eight 107
Displacement: 1,745ccm
Torque: 152 Nm at 3,250 rpm
Power: 91 hp / 67kw @ 5450rpm
Fuel test procedure EC 134/2014

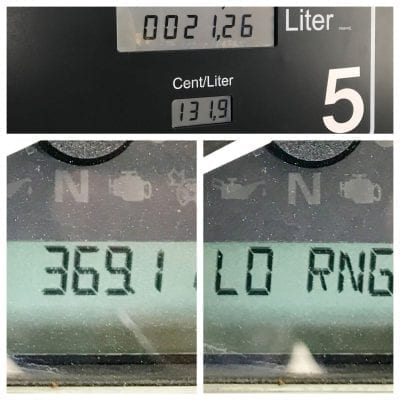

Consumption: 5.9 L / 100 km
Co² emission test procedure EC 134/2014
Co² emissions: 136 g/km
External web link to Harley-Davidson

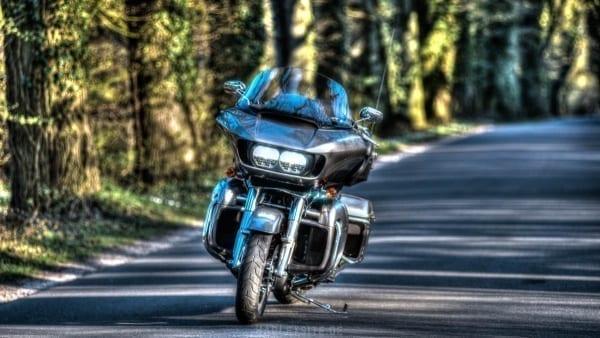

This machine is equipped with a frame-fixed, aerodynamically favorable fairing, which makes the straight-line stability particularly stable. Its high windshield also effectively relieves taller riders of wind pressure.
Two leg shields also offer perfect protection from wind and weather. In addition to two suitcases with a capacity of around 32 liters each, a Tour Pak with a capacity of around 69 liters is available for luggage.

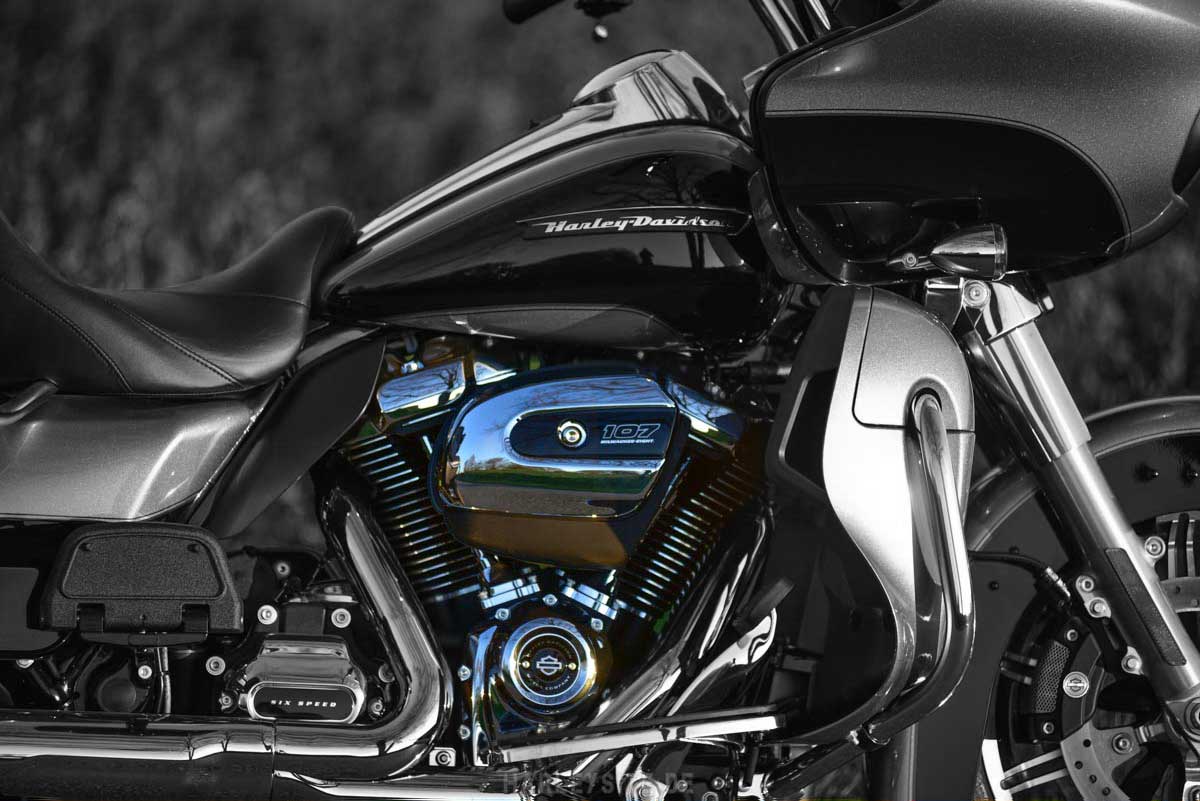

The new twin-cooled Milwaukee-Eight 107 powers the machine. The 1745 cm3, 67 kW (91 hp) engine is suspended in the frame with vibration isolation and coupled to the six-speed transmission via a hydraulically actuated clutch.
New chassis components at the front and rear make the machine even more comfortable and stable to ride. Dual Daymaker headlights with LED technology illuminate the road.
With the handlebars cranked far back, the comfortable seat with passenger backrest and armrest, comfortable footboards and a 22.7 liter tank, the Road Glide Ultra cuts a first-class figure even on long journeys.
Entertainment is provided by the Boom! Box 6.5 GT infotainment system with navigation and 100-watt audio system. Also on board: cruise control and the security system with immobilizer and alarm system.
Milwaukee-Eight 107
Type: FL3 Model: FLTRU Engine: Twin Cooled Milwaukee-Eight 107
Air and liquid-cooled two-cylinder four-stroke 45-degree VTwin, transverse crankshaft, one bottom-mounted camshaft driven by toothed chain, four valves per cylinder actuated by forked rocker arms (OHV), exhaust area liquid-cooled, hydraulic tappets, dry sump lubrication, fuel injection, intake manifold Ø 55 mm, electronic throttle control (ETC), contactless transistorized ignition, electric starter, 48 A three-phase alternator with 600 W at 2000 rpm and max. output of 625 W, maintenance-free battery. 625 W, maintenance-free 12 V/28 AH battery, regulated catalytic converter
Bore: 100.0 mm
Stroke: 111.1 mm
Displacement: 1745 cm3
Compression ratio: 10.0:1
Power kW (hp)/rpm*: 67 (91)/5450
Torque Nm/rpm*: 153/3250
Top speed: 175 km/h Emissions: Euro IV
Primary drive via duplex chain, hydraulically actuated nine-disc anti-hopping oil bath clutch, six-speed gearbox, toothed belt
Primary gear ratio: 1.35 (46/34 Z)
Secondary gear ratio: 2.13 (68/32 Z)
Total gear ratio: 1st gear: 9.593 2nd gear: 6.650 3rd gear: 4.938 4th gear: 4.000 5th gear: 3.407 6th gear: 2.875
Warranty: two years with no mileage limit** First inspection: after 1600 km
Service intervals: once a year or every 8000 km
Engine oil change: every 8000 km with
Filter: every 8000 km
Engine oil: Harley-Davidson HD 360
Filling capacity: Oil tank with filter: 4.7 l
Coolant capacity: 1.04 l Spark plugs: 6R10
Air filter: fiberglass filter element
Idle speed: 850 rpm
Fuel: Super unleaded
Double-loop tubular steel frame, telescopic fork (SDBV technology), stanchion tube diameter 49 mm, two suspension struts, adjustable via rotary control, two-sided swingarm made of square steel profile
Fork angle: 29°
Steering head angle: 26°
Caster: 170 mm
Brake (with ABS and electron.
brake force distribution):
front: two disc brakes, perforated, Ø 300 mm, four-piston fixed calliper
Rear: one disc brake, perforated, Ø 300 mm, four-piston fixed calliper
Suspension travel: front: 117 mm rear: 76 mm
Rim size: front: T17 x 3.0 10-spoke cast alloy wheel
Rear: T16 x 5.0 10-spoke cast alloy wheel
Standard tires: Dunlop Harley-Davidson front: D408 F 130/80 B17 65H
rear: D407 T 180/65 B16 81H
Tire pressure: front: 2.5 bar rear: 2.8 bar
Empty weight incl. operating materials: 425 kg
Wheel load distribution: front: 191 kg rear: 234 kg
Permissible total weight: 617 kg Payload: 192 kg
Tank capacity (reserve): 22.7 l (3.8 l)
Length: 2595 mm Width: 930 mm
Height: 1425 mm
Seat height, without rider: 735 mm
Wheelbase: 1625 mm
Features: frame-mounted Road Glide fairing, leg shields, security system (immobilizer and alarm system with keyless remote control), remaining range indicator, rider footboards, paddle shifters, adjustable passenger footboards and backrest, electronic cruise control, Boom! Box 6.5 GT infotainment system incl. navigation system, Tour-Pak and two luggage cases (total volume: 132 l), self-resetting indicators, hazard warning lights, Daymaker LED twin headlights, jukebox compartment, connection for battery charger
Vivid Black, Black Quartz, Billet Silver & Vivid Black, Mysterious Red Sunglo & Velocity Red Sunglo, Black Hills Gold & Black Quartz, Bonneville Blue & Fathom Blue
* in accordance with 134/2014/EC ** Austria: four years
